Shop Direct From The Factory: Get Your PPHD123 CNC Hydraulic Press Plate Punching And Drilling Machine Today!

NO.	Item			Parameter
1	Punching capacity			1500KN
2	Maximum plate size			1500×775mm
3	Plate thickness range			5～25
4	Modulus	Number of punching and marking dies		3
5	Processing capacity	Maximum punch diameter		φ30mm
		For Q345 steel, σ B ≤ 610mpa, φ 3025mm (diameter thickness) For Q420 steel, σ B ≤ 680mpa, φ 26* 25mm (diameter* thickness)
6	Marking ability	Marking ability		800KN
		Characters size		14×10mm
7		Number of prefix characters in a group		10
8	Minimum hole margin			25mm
9	Number of clamps			2
10	System pressure		High pressure	24Mpa
			Low pressure	6Mpa
11	Air pressure			0.5Mpa
12	Motor power of hydraulic pump			22KW
13	Number of CNC axes			2
14	X. Y-axis speed			18m/min
15	X-axis servo motor power			2KW
16	Y-axis servo motor power			2KW
17	Cooling mode			Water-cooling
18	Total power			26KW
19	Machine dimensions (LWH)			365027002350mm
20	Machine weight			9500Kg

NO.	Name	Brand	Country
1	Linear guide rail	HIWIN/PMI	Taiwan(China)
2	Oil pump	Albert	USA
3	Electromagnetic relief valve	Atos	Italy
4	Electromagnetic unloading valve	Atos	Italy
5	Solenoid valve	Atos	Italy
6	One way throttle valve	Atos	Italy
7	P-port throttle valve	JUSTMARK	Taiwan(China)
8	P port check valve	JUSTMARK	Taiwan(China)
9	Hydraulic control check valve	JUSTMARK	Taiwan(China)
10	Drag chain	JFLO	China
11	Air valve	CKD/SMC	Japan
12	Confluence	CKD/SMC	Japan
13	Cylinder	CKD/SMC	Japan
14	FRL	CKD/SMC	Japan
15	AC servo motor	Panasonics	Japan
16	PLC	Mitsubishi	Japan

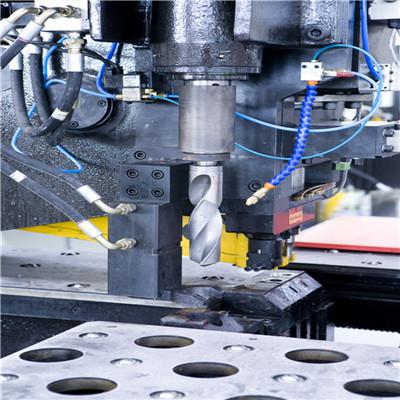

Note: The above is our fixed supplier. It’s subject to be replaced by same quality components of other brand if the above supplier can’t supply the components in case of any special matter.1. The PPHD123 CNC hydraulic punching machine has a punching force up to 1200KN. It has three die positions and can be installed with three sets of punching dies, or only two sets of punching dies and a character box. The die is easy to replace and the print is clear. 2. Equipped with a CNC drilling power head, which adopts a special spindle frequency conversion motor of strong overload type, and the motor drives the drilling spindle to rotate through a synchronous belt. The servo motor drives the feeding of the CNC drilling power head, and the fast forward, work advance and fast reverse of the drill are controlled by the CNC system and completed automatically. 3. The machine has two CNC axes: the X axis is the left and right movement of the clamp, the Y axis is the front and rear movement of the clamp, and the high-rigid CNC worktable ensures the reliability and precision of feeding. 4. Both X and Y axes use precision linear guides, which have large load, high precision, long service life of the guides, and can maintain the high precision of the machine for a long time. 5. Use the combination of centralized lubrication and distributed lubrication to lubricate the machine, so that the machine is always in good working condition. 6. The plate is clamped by two powerful hydraulic clamps and moves quickly for positioning.7. The control system adopts Siemens latest CNC system SINUMERIK 808D or Yokogawa PLC, with high reliability, convenient diagnosis and easy operation. 8. The plate is processed and positioned quickly, easy to operate, small footprint, and high production efficiency.

PPHD123 CNC Hydraulic Press Plate Punching and Drilling Machine
